5-25ml Vial liquid filling machine, washing, drying, filling and sealing machines

Model Number : LYYG5-25

Certification : CE, ISO, GMP

Place of Origin : China(Thailand available soon)

MOQ : 1 unit

Price : 50,000-500,000 USD per piece

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 5 pcs per Month

Delivery Time : 30-180 work days normally

Packaging Details : carton, wood carton, pallets

Machine Name : Vial Liquid Filling Machine

Function : Vials Washing, Sterilization, Filling, Plugging, Capping

Filling Volume : 5-25ml

Filling Liquid Type : Pharmaceutical Liquids

Output Capacity : 6000-22000 BPH

Vials Material : Glass

Filling Accuracy : +/-0.5%

Breakage Rate : <0.5%

Filling Protection Air : Nitrogen

CIP/SIP : Yes

Oven Cooling Style : Water Cooling

Capping Blade : 2

LAF : Yes

Contact Now

5-25ml Vial liquid filling machine, washing, drying, filling and sealing machines

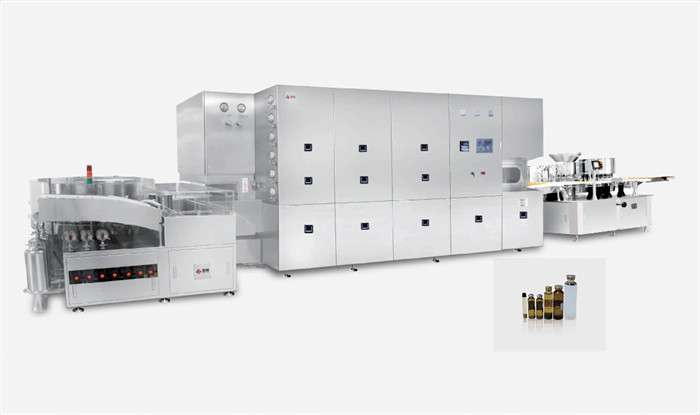

5-25ml Vial Liquid Filling Machine: Integrated Production Line for Pharmaceutical Applications

The 5-25ml Vial Liquid Filling Machine is a fully integrated production line designed for the efficient processing of oral liquid bottles in the pharmaceutical industry. This advanced system combines the LYQCL series vertical ultrasonic bottle washing machine, the LYASMR series tunnel hot air circulation sterilization oven, and the LYYGZ series filling and capping machine, offering a seamless solution for aseptic production. With a compact, sleek design, this machine occupies minimal space while ensuring easy cleaning and maintenance.

The 5-25ml Vial Liquid Filling Machine is optimized for the production of 5-25ml oral liquid bottles, completing a wide range of processes including water spraying, ultrasonic cleaning, rinsing, air rinsing, drying sterilization, cooling, filling, capping, and final sealing. Its advanced design ensures stable performance and compliance with current GMP standards, making it an ideal choice for pharmaceutical plants requiring high-quality aseptic production.

5-25ml Vial Liquid Filling Machine Specifications:

Model	LLYQCL100+LYASMR620/48+LYYGZ16
Bottle Spec	5-25ml oral liquid bottles
Production Capacity	6000-22000 BPH
Clarity	>99%
Breakage Rate	<0.5%
Filling Volume Torlerance	+/- 0.5-2%
Fresh Water Consumption and Pressure	0.2-0.4 Mpa/ 0.6-1.0 cbm/h
Clean Air Consumption and Pressure	03-0.6 Mpa / 35-80 cbm/h
Capping PASS rate	>99%
Wind Excretion Volume	3500-4000 cbm/h
Weight	7500Kg
Total Power	about 72KW 380V 50Hz
Size	9920mm L x 2260mm W x 1680mm H

5-25ml Vial liquid filling machine, washing, drying, filling and sealing machines

Key Features:

Vertical Ultrasonic Bottle Washing Machine: Combines online ultrasonic cleaning with separate water and air spray nozzles, ensuring effective cleaning with minimal bottle breakage and no cross-contamination.
Tunnel-Type Hot Air Circulation Sterilization Oven: Utilizes laminar flow principles and high-speed hot air sterilization technology to create a Class A laminar flow environment, ensuring uniform heat distribution and excellent drying efficiency.
Integrated Design: Streamlines production processes, reducing space requirements and improving efficiency.
Compliance with GMP Regulations: Meets updated GMP standards with advanced cleaning and sterilization technologies.

This Vial Liquid Filling Machine is a reliable and efficient solution for pharmaceutical manufacturers, providing advanced technical support for aseptic production and ensuring high-quality output.
